Equipment adopts FUJI servo motor as drive motor, FUJI motor with its stable performance is widely used in the industries of laser cutting, Yahong laser covers rich experience in servo motor applications, to ensure that the laser cutting machine has the best matching of inertia ratio and the fastest acceleration, the machine is in the best working state.
Equipment adopts Japan SHIMPO precision 3 arc-min gear reducer, the machine running on the high precision, Japan SHIMPO company’s production of precision planetary reducer with high quality, high service life is famous in the industry, is decelerating mechanism to build high-end brand of the industry
Technical indicators:
1. Machine tool technology parameters
| Items | Technical parameters |
| Max cutting size (mm) | 3000×1500 |
| The workpiece maximum height (mm) | 90 |
| Effective travel | X axle(mm) | 1550 |
| Y axle (mm) | 3050 |
| Z axle (mm) | 100 |
| PositionaI accuracy | X axle (mm/m) | ±0.05/1000 |
| Y axle (mm/m) | ±0.05/1000 |
| Z axle (mm/m) | ±0.01/100 |
| repeated positioning accuracy | X axle (mm) | ±0.01 |
| Y axle (mm) | ±0.01 |
| Z axle (mm) | ±0.005 |
| Rapid positioning speed | X axle (m/min) | 72 |
| Y axle (m/min) | 72 |
| Z axle (m/min) | 15 |
| Max Cutting Speed (m/min) | 15 |
| IP Grade | IP54 |
| Total weight (T) | 4.35 |
| Machine Power Consumption (Kwh) | 1.6 |
| Boundary dimension L×W×H(mm) | 4191×2520×1326 |
2. Laser & process parameters
| Items | Technical parameters |
| working mode | Continuous/modulation |
| Laser power(W) | 500 |
| Laser wavelength (nm) | 1070 |
| The maximum modulation frequency (KHz) | 5 |
| laser mode | Multi mode |
| Optical quality (M2) | 2.2mm*mrad |
| Power adjust range (%) | 5-100 |
| Fiber Length (m) | 10m |
| Type of cooling | water-cooling |
| Operating temperature (℃) | 10-40 |
| Long-term stability (24h) | ﹤2% |
| Laser life(h) | 100000 |
| maximum cutting thickness | MS (mm) | 12 |
| SS(mm) | 4 |
| cutting speed (1mm MS) | 15m/min |
| Focal length F(mm) | 150 |
| Adjustable focus range (mm) | 0-10 |
| Overall Power Consumption (Kwh) | 4 |

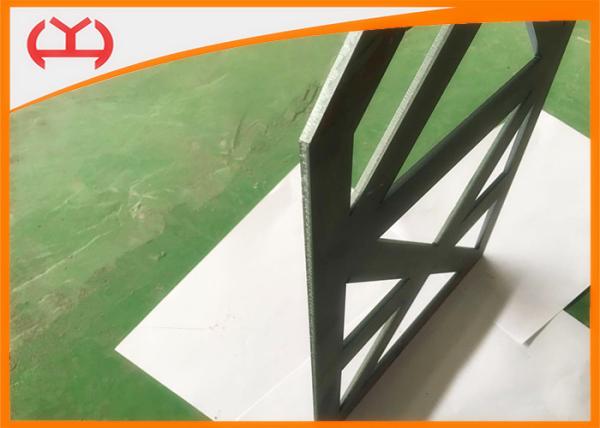

Application Field:
♦ Suitable for cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe & tube, etc.
♦ Applicable to machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.

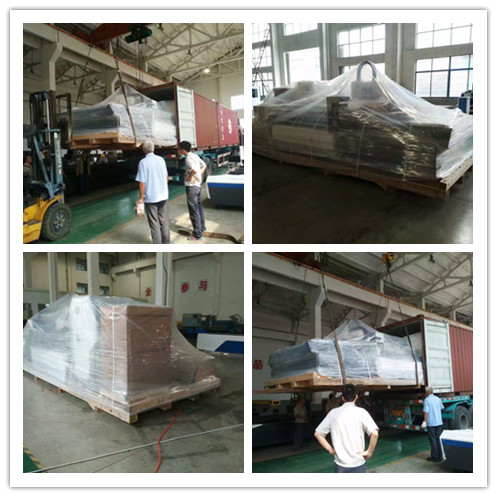

Delivery :
